Pressure Testing

PIKUS TESTING DATA AND RESULTS

Pikus has engineered 3D prints to withstand extreme pressure from soil and concrete infill after several rounds of testing. As part of the testing protocol, Pikus will ensure all pressure testing is done in accordance with local regulations and utilizes the materials that the print will be filled with (most commonly, soil, concrete, and water). We test every planter and column that goes out the door using pressure testing standards and likewise test all relevant projects and prints.

CATALOG

General testing with a fully filled print structure over the course of 5 days to ensure no leaks or cracks.

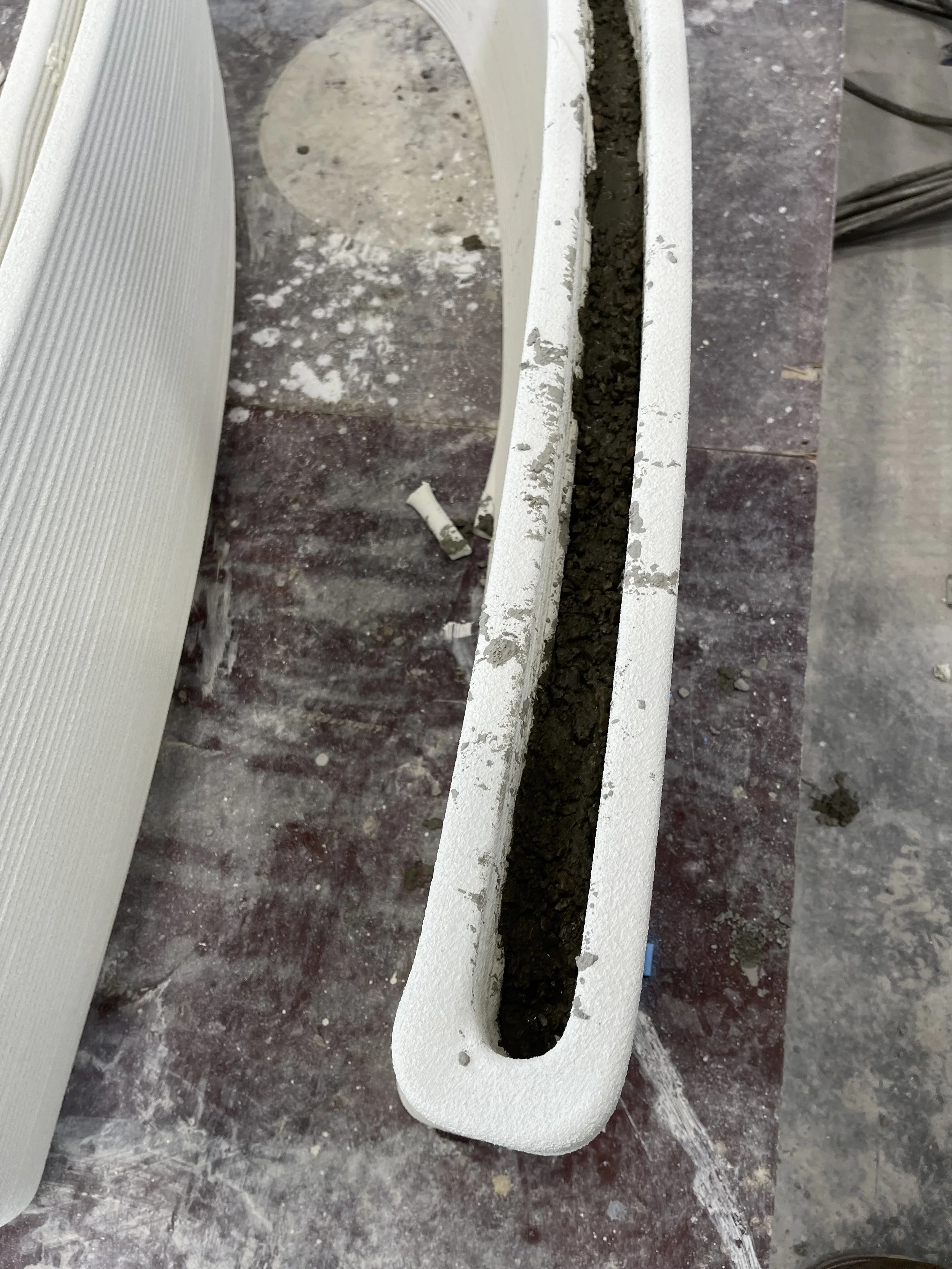

Heavy-duty testing over the course of 28 days for concrete infill in conjunction with Pikus Concrete.
Testing with no internal supports v. testing with internal supports resulting in a pass.
Standardized testing throughout all projects.
Products are tested after two weeks of curing.

TESTING DETAILS:

Pikus Testing

DOWNLOADABLES AND EXTRA CONTENT

Here you will find access to aspects of Pikus testing data and useful information. If you would like access to information beyond that, please contact Pikus directly.

Downloads and Extras:

BIFMA Data

Safety Data

Warranty

Pressure Testing

Passing Results v. Fail Results

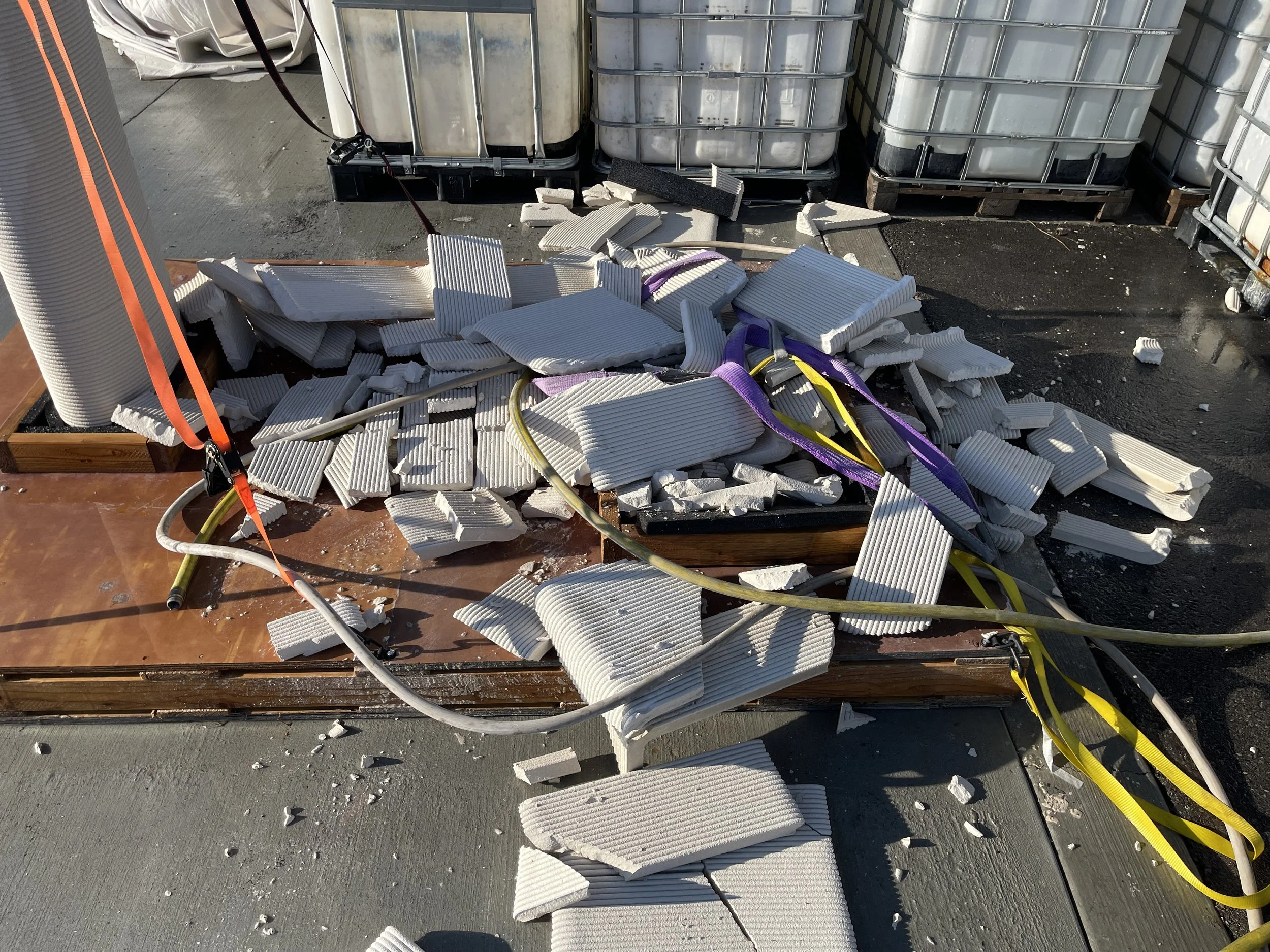

Testing fails occur when the print cracks under the weight from the pressure test. This usually occurs within the first three days after being filled. When a product fails the test, it is then re-printed with some elements redesigned or reinforced before it is retested.

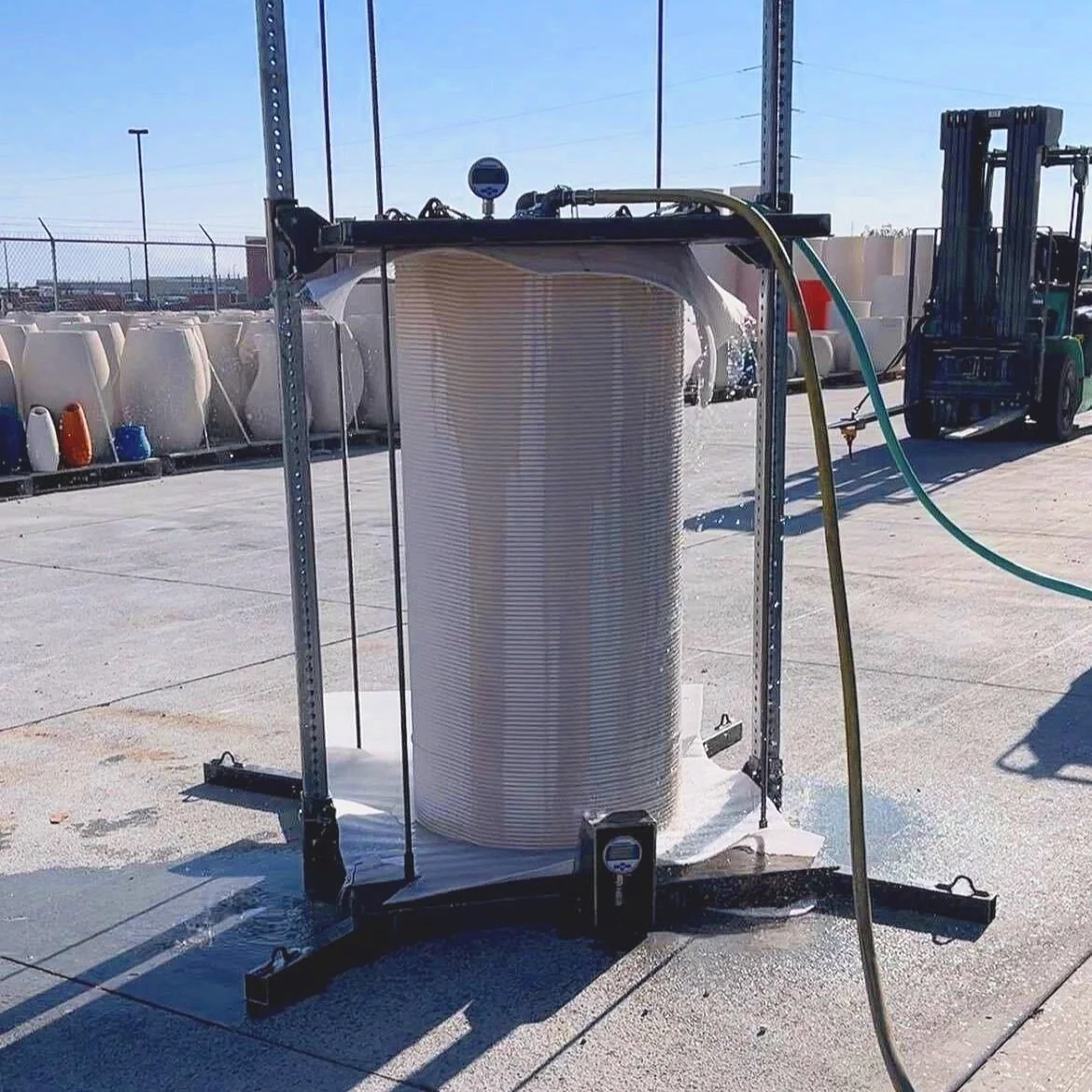

The product will pass pressure testing after 5 days of being fully filled with the proper material (typically concrete, soil, or water). A pass may occur with or without internal supports, depending on the shape, size, topper, or coatings of the print. Records of pass and fail results may be provided upon request. All columns, planters, and similarly used prints are required to pass all pressure testing before shipment.
